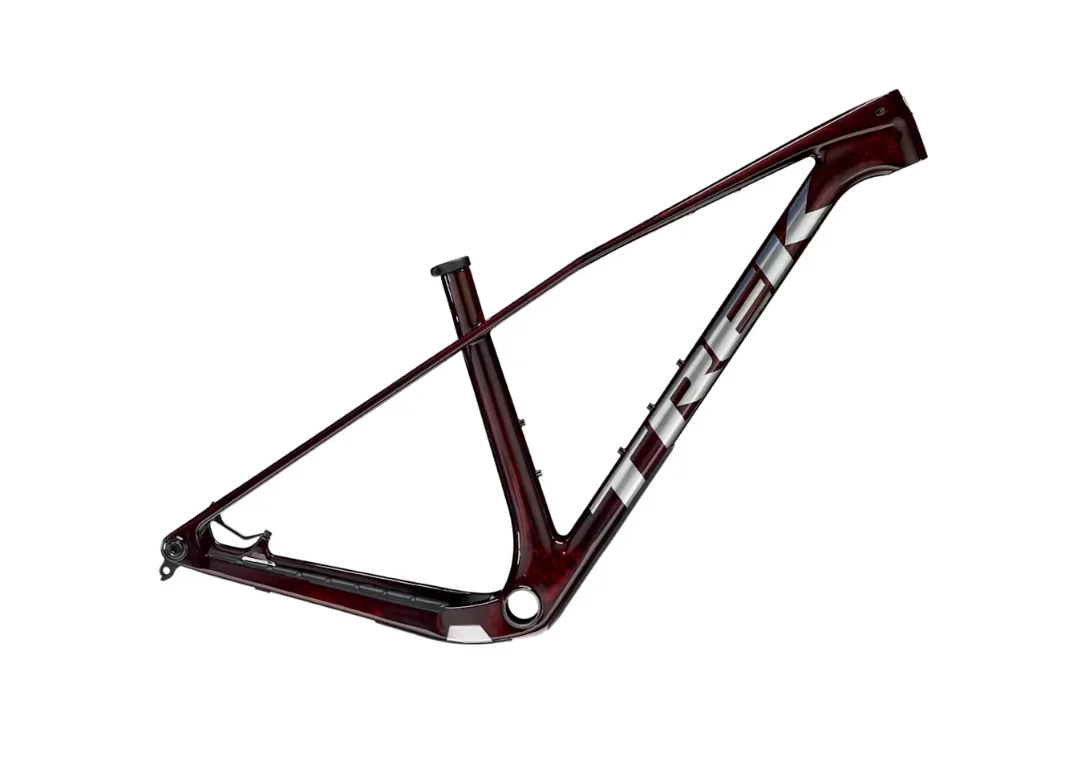

The Procaliber C Frame Set Gen 3 is a carbon cross-country hardtail frame ready for your dream build. It marries aggressive XC geometry with IsoBow trail-smoothing tech for a ride that's light, efficient and quick to respond to your every input. Perfect for building up as a fast 29er with up to a 120 mm fork.

*Please note – spec applies to all sizes unless listed separately

Frame: OCLV Mountain Carbon, IsoBow, tapered head tube, internal routing, balanced post-mount brake, Boost148

Skewer rear: Bontrager Switch thru axle, removable lever
Max tyre size: Frame: 29x2.40", Fork: See manufacturer

Max. chainring size: 1x: 38T

Head set: FSA IS-2, 1-1/8" top, 1.5" bottom
Rotor size: Max brake rotor sizes – Frame: 180 mm, Fork: see fork manufacturer

Tool: Bontrager Switch Lever, w/tool

Weight: M - 1.20 kg / 2.65 lbs (excluding hardware)
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
